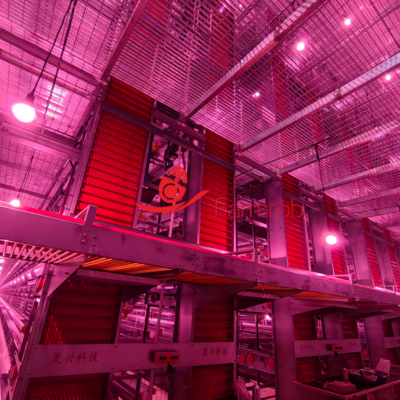

Auger Filling Device Layer Chicken Cage System Low Feed Waste

Auger Filling Device Layer Chicken Cage System Low

Feed Waste

Features:

Cage mesh: Cage mesh is made of high-quality Q235 Al-Zn alloy (10% aluminum,

275g/m² zinc), delivering superior corrosion resistance. It is burr-free, elastic, and helps

reduce egg breakage rates. The appropriately sized grid design prevents chickens from

getting stuck, escaping, or falling out. Maintain the normal activities of the chickens.

Filling device: The auger filling process is two-stage. The slant and transverse filling

are respectively controlled by one motor to avoid the breakage of the auger and the

pipe at the intersection, greatly reducing the failure rate. After the feeder moves away,

the discharging ports will automatically close to prevent feed dropping.

Water line terminator: The water line terminator enables easy water level adjustment

and is connected to the end drainage, preventing water spillage. It is equipped with a

water level sensor for convenient monitoring of water pressure and to determine

whether the pipeline has sufficient water supply.

Manure conveyor: Back manure conveyor: Features a 7mm thick manure belt and an

alloy frame that is rust-proof and deformation-resistant. Effectively transports manure to

collection trucks or processing facilities.

Egg Belt: Width = 100mm. Made of unused high-quality polypropylene (PP), the

weaving on the egg belt is of great quality. It offers high tensile strength and resistance,

preventing egg displacement and effectively reducing egg collision to improve overall

egg quality.

Air deflector: The air deflector is constructed with a 50mm insulated panel and an

aluminum alloy frame. It is controlled by Munters AC2000. The matching side curtains is

for effective management of airflow direction and avoid making the chickens ill.

 About Farmrob

Farmrob was founded in 1992 and is a high-tech company specializing in poultry

rearingmanufacturer. Its main products include layers, broilers, breeders and laying

ducks. Farmrob has served over 5,000 customers so far.  Now, Farmrob has No.1 layer

equipment market share and provider, and is Top 3 poultry industry in China. We are

committed to providing reliable and durable equipment for clients. With technological

innovation as the core, Farmrob insists onanimal welfare and production efficiency, and

helps the global farming industry to move towards a better future.
